Challenging the World. The New Standard for Cables.

Product

IEEE 1580

IEEE 1580

"The Ultimate Power Link for the World’s Most Demanding Offshore Environments"

IEEE 1580 (Type P) cables are top-tier marine and offshore cables utilized for power, control, and lighting systems in oil drilling rigs, FPSOs, and various offshore platforms.

Main Applications

Drilling platforms, offshore plant power and control circuits, high-load power transmission within vessels, and engine room wiring.

Key Features
  • Heat Resistance & Flexibility: Utilizes specialized synthetic rubber to withstand heat up to 110°C, enabling optimized designs for tight and complex structures.
  • Chemical Resistance: Ensures no degradation in performance even when exposed to various chemical substances.
  • Flame Retardancy & Low Toxicity: Minimizes the emission of toxic gases and maintains circuit functionality in the event of a fire.
IEEE 1580

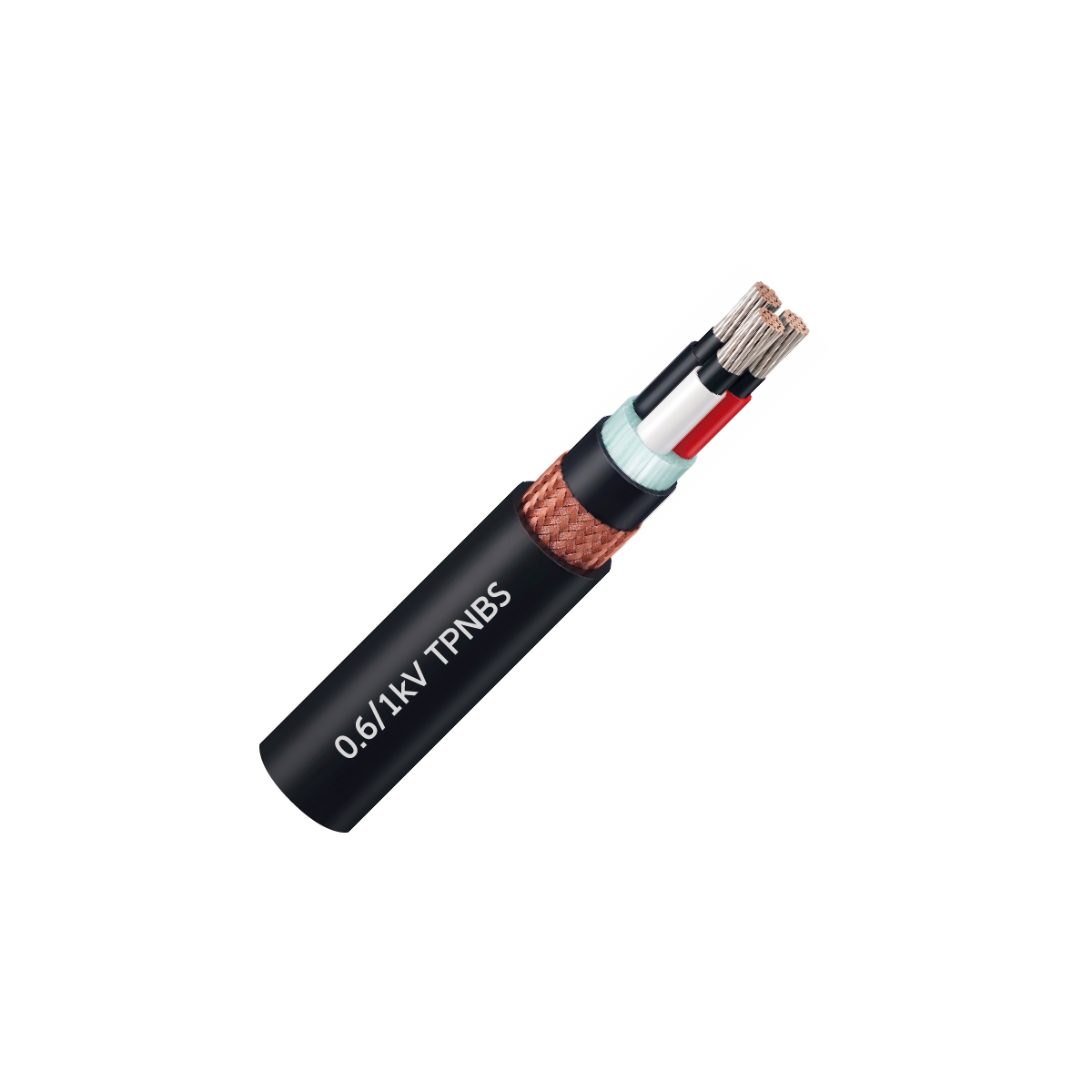

Cable Designation

  • 0.6/1kV DPN, DPNB, DPNBS
  • 0.6/1kV TPN, TPNB, TPNBS
  • 0.6/1kV FPN, FPNB, FPNBS

Application Standard

  • Design guide : IEEE 1580(2010), UL 1309(2011)
  • Insulation material: IEEE 1580, Type P UL 1309, X110
  • Sheath material : IEEE 1580, Type N
  • Flame retardant : IEEE 1202 & IEC 60332-3 Category A
  • Sunlight (UV) resistant : UL 1581
  • Fire resistant : IEC 60331-21(90min), IEC 60331-1,-2(120min), FS-type only
