Welding Cable

Welding Cable

PDF

"High-Flex Power Lines Ensuring Perfect Control and Safety in Extreme Conditions"

Engineered as heavy-duty secondary leads, these premium welding cables deliver dependable connectivity between arc welding power sources, electrodes, and grounds. Formulated to withstand rigorous flexing and severe surface abrasion, they provide exceptional flexibility to minimize operator fatigue while optimizing current-carrying capacity (ampacity).

Main Applications

Secondary circuits for arc welding equipment, heavy-duty power leads, battery charging assemblies, and main transit power distribution for buses and trains.

Key Features
  • Flexibility: Composed of extremely fine wires, allowing for free movement without twisting.
  • Outer Sheath Protection: Completely protects internal conductors from sparks, spatters, friction, and external impacts.
  • Current Capacity: Stably supplies a high capacity of current while minimizing heat generation.

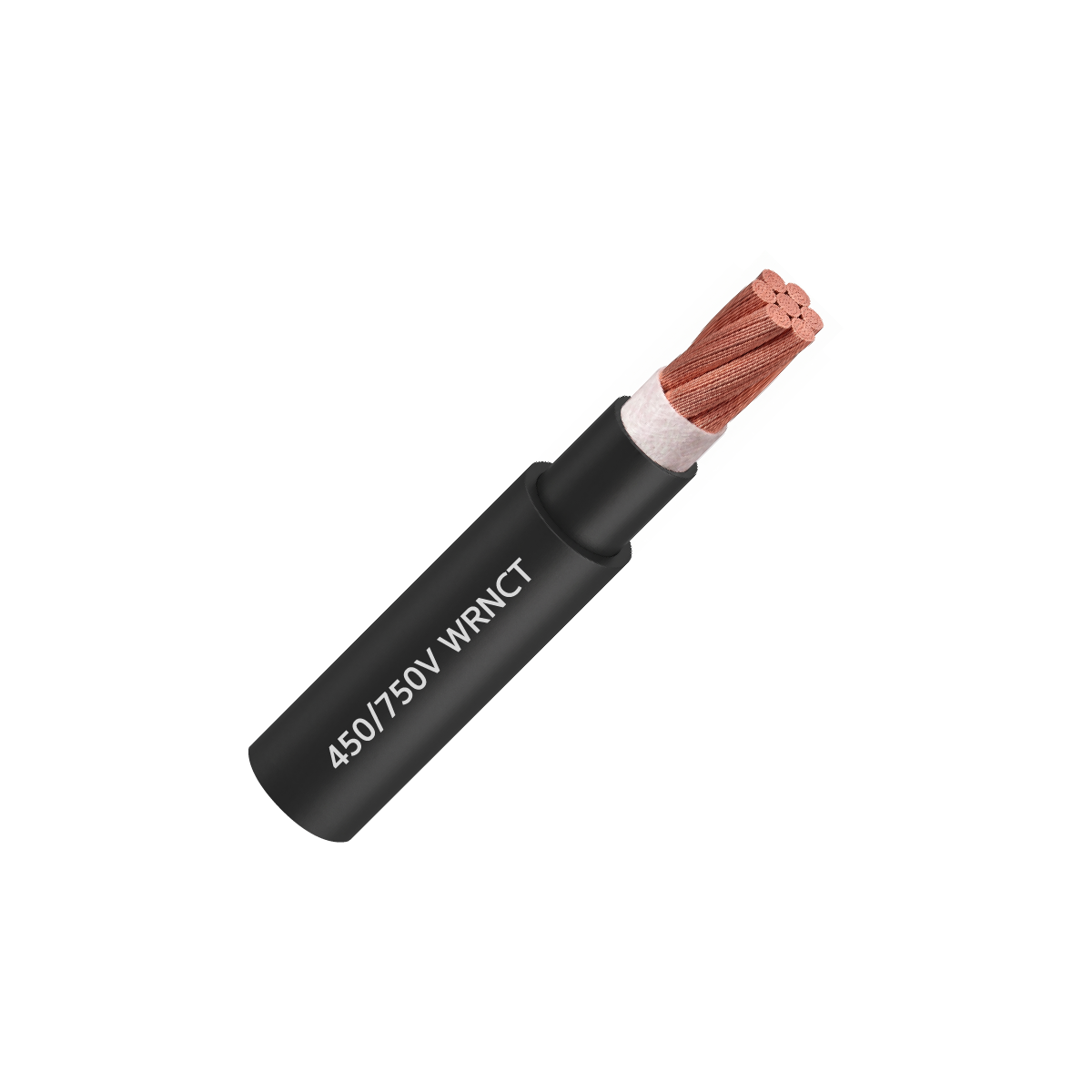

Welding Cable

Cable Designation

  • 450/750V WCT
  • 450/750V WRNCT
  • 600V SK-WELDING

Application Standard

  • Design guide : UL1581
  • Insulation material : UL1581 Table50.55, EPR
  • Flammability : UL62 Clause 5.1.5
  • Cold Bend : UL62 Table42, 43 (-40℃ x 4hr)
  • Oil Resistant : UL1581 Table 50.55
  • Max. rated conductor temperature : -50℃ ~ 105℃
