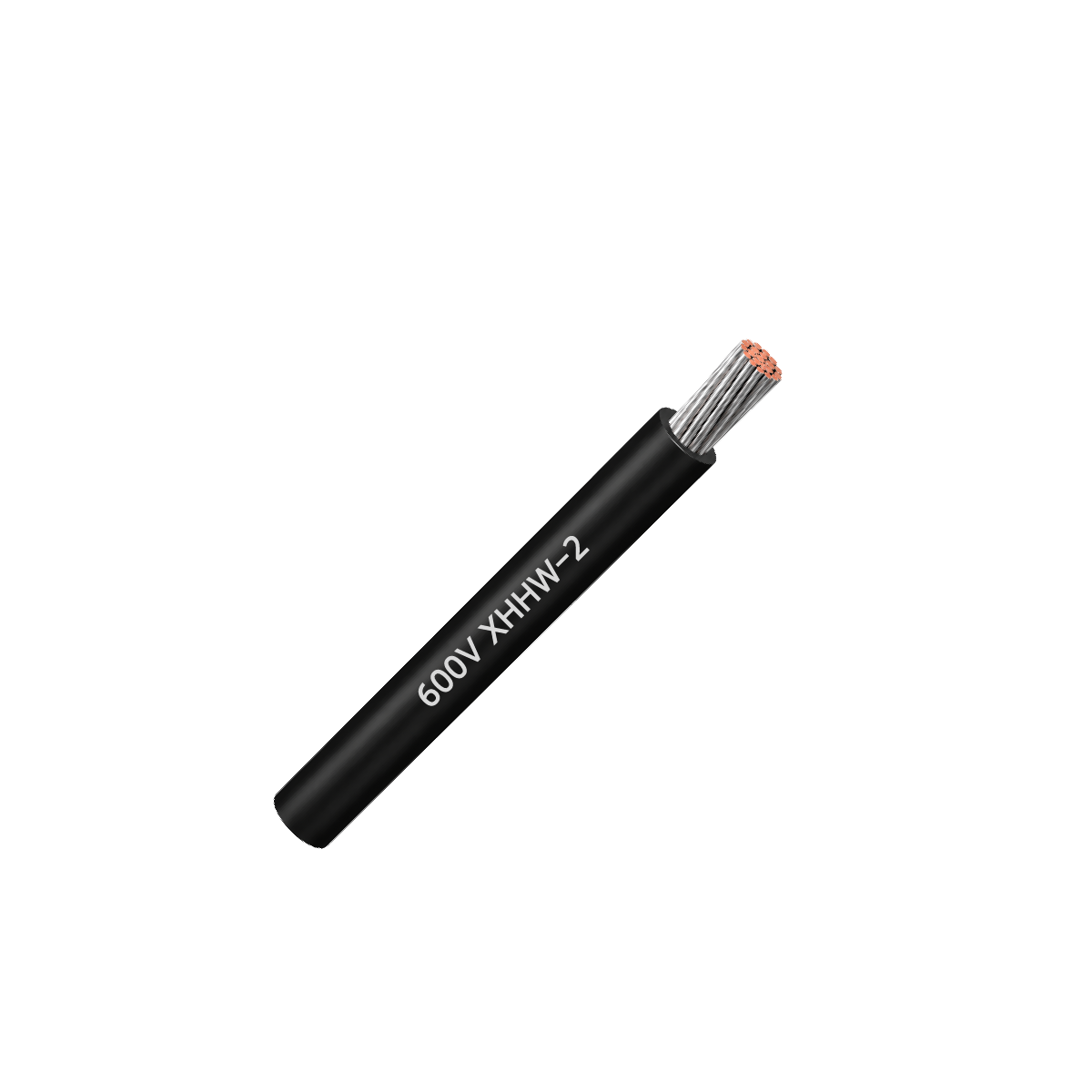

XHHW-2

XHHW-2

"The Premium Standard for High-Efficiency Power Distribution"

Engineered with robust XLPE insulation, XHHW-2 provides superior mechanical durability and electrical reliability.

Formulated to resist abrasion and moisture without requiring a nylon jacket, it effectively manages severe thermal loads under high-capacity power loads.

This makes it the premier solution for primary feeder circuits in heavy-industrial plants and critical commercial infrastructure.

Main Applications

Main power distribution for industrial complexes and high-rise buildings, and mission-critical electrical grids for airports and hospitals.

Key Features
  • High-Performance XLPE: More resistant to thermal deformation than PVC wires, maintaining excellent insulation even during overloads and short-circuit accidents.
  • Nylon-Free Design: More resistant to scratches than nylon-jacketed wires and features a smaller bending radius, making work easier inside tight distribution boxes.
  • Heat Resistance: Maintains a high allowable temperature of 90°C in wet locations as well as dry locations.
XHHW-2

Cable Designation

  • 600V XHHW-2

Application Standard

  • Design guide : UL44
  • Insulation material : UL44 Table 19, Cross-Liked Polyolefin
  • Flame & Smoke : UL44 Clause 5.14
  • Cold Bend : UL44 Clause 5.11.1 (-25℃ x 4hr)
  • Cold Impact : UL44 Clause 5.11.2 (-40℃ x 4hr)
  • Max. rated conductor temperature : 90℃(wet & dry)
