"The Most Flexible and Powerful Conduit for Massive Energy Transmission"

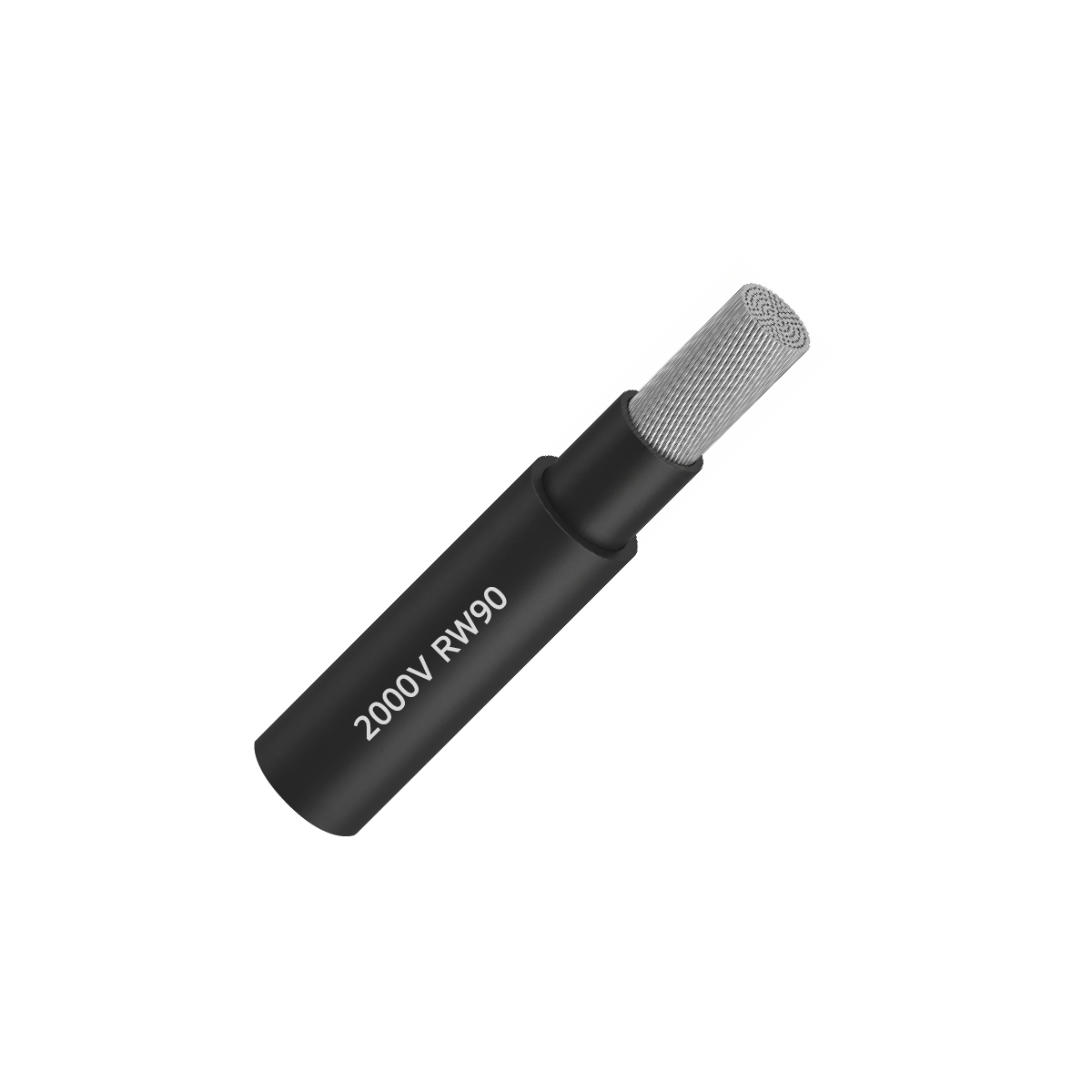

The DLO cable is a premium, ultra-flexible heavy-duty cable engineered to deliver robust power transmission under high-voltage conditions up to 2000V.

Ideally suited for tight spaces requiring severe bending radii and enduring continuous mechanical vibration, it stands as a critical power solution across demanding industrial and transit sectors.

Main Applications

Diesel-electric locomotives, offshore drillships & drilling platforms, heavy-duty material handling equipment, and utility-scale solar & wind energy systems.

Key Features
  • Ultra-Flexibility: Extremely easy to route in confined spaces and minimizes the risk of disconnection even under repetitive vibration.
  • Environmental Resistance: Excellent resistance to operating temperatures up to 90°C, moisture, oil, acids, and UV radiation.
  • Multi-Standard Certification: Goes beyond simple DLO specifications, holding dual certification for RHH/RHW-2.
DLO

Cable Designation

  • 2000V RW90

Application Standard

  • Design guide : UL44
  • Insulation material : UL44 , EPR
  • Jacket material : UL44, CPE
  • Flammability : UL44 Clause 5.14
  • Cold Bend/Impact : UL44 5.11
  • Oil Resistant : UL44 5.16
  • Gasoline Resistant : UL44 5.17
  • Max. rated conductor temperature : -40℃ ~ 90℃
